Systems & Infrastructure
The system your home stands on.
The wiring, network, power and water a home runs on. Documented for any good electrician to work on.
Energy · live

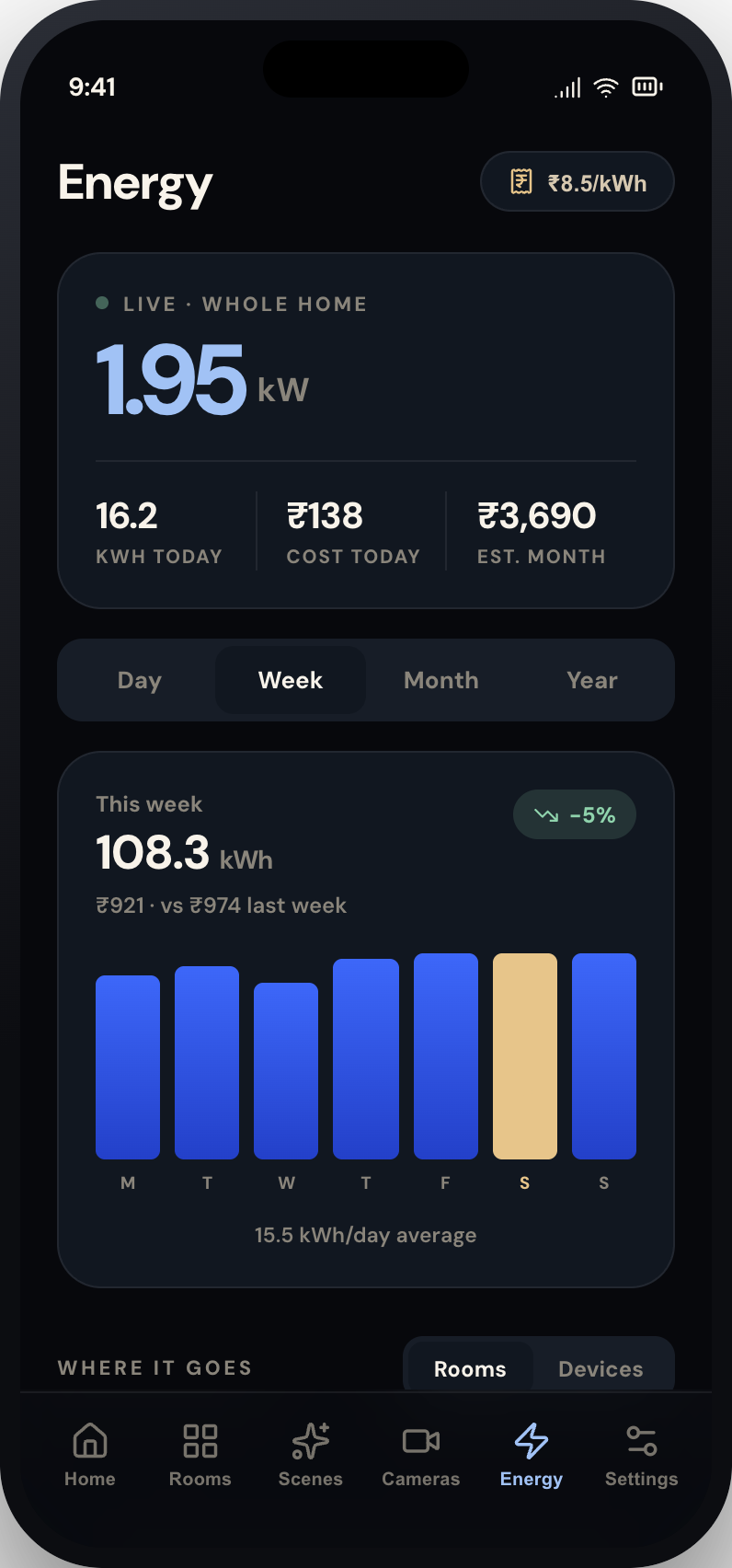

Your whole energy system, live.
Solar, grid and battery on one screen, updating live. Tap a device to see where its power goes.
Whole-home · kW
Drawing from solar, grid & battery
An illustrative live readout, the same view the app gives you. It works to the rules you set, and you can always step in.
Water · live
Tanks and pumps, handled.
See both tank levels and the pressure at your taps. The tank refills itself. Try the pump.
Tanks
Supply · pressure pump
Transfer pump · sump → overhead
Irrigation · automatic

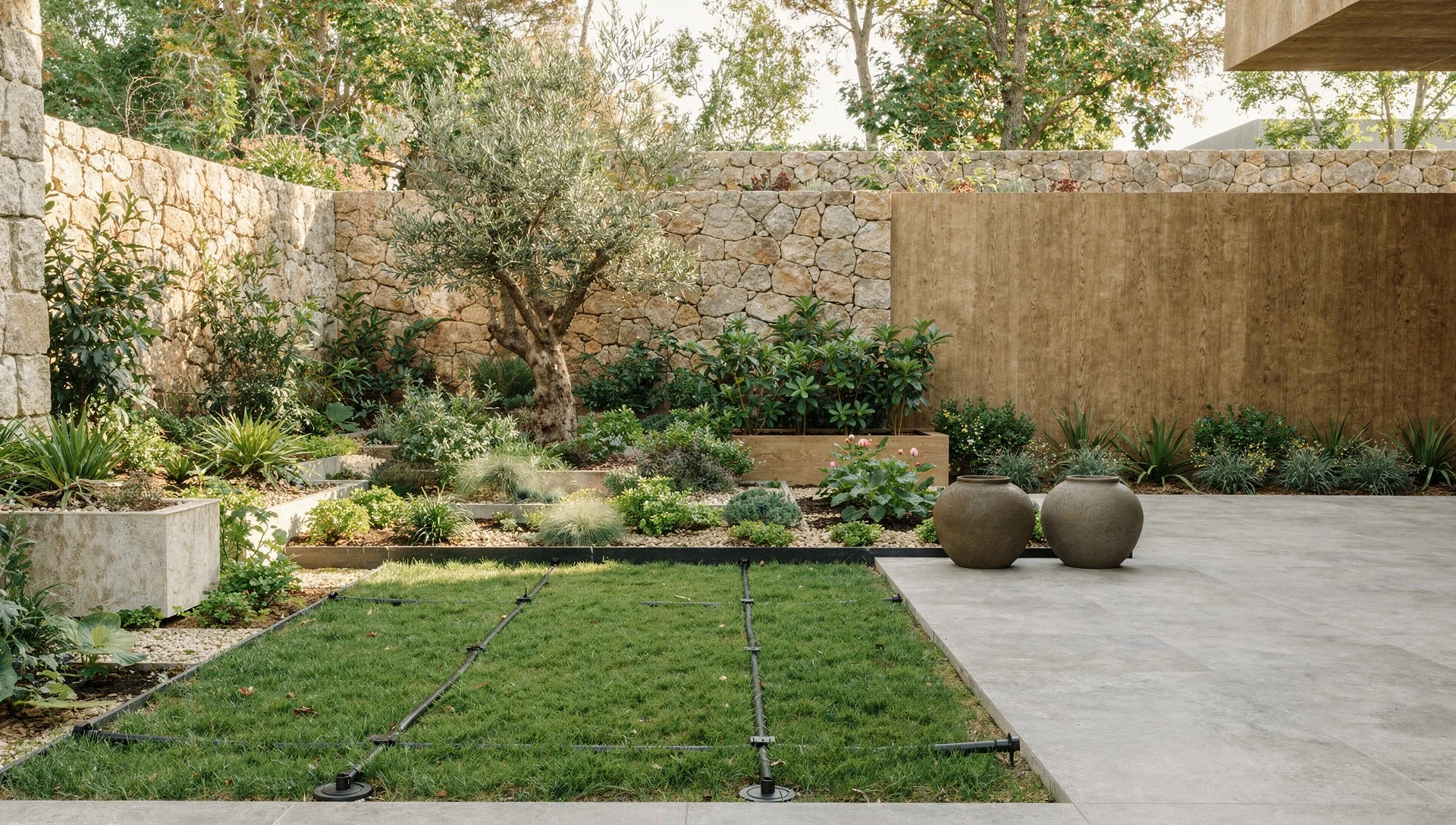

The garden waters itself.
Each zone runs its own schedule and skips itself when rain is forecast. Tap a zone.
Zones
Runs on its own. Tap any zone to take over, always yours.
Pool · automatic
The pool looks after itself.
The filter, heater and cleaner run to a schedule, so the pump runs fewer hours. Tap a scene.
The engineering
Built so it can be serviced.
Every wire is numbered and drawn on a schematic, so a good local electrician can work on it.
The core itself is compact: one slim, wall-mounted enclosure that fits an apartment cupboard as readily as a villa’s utility room, so no dedicated plant room is required.

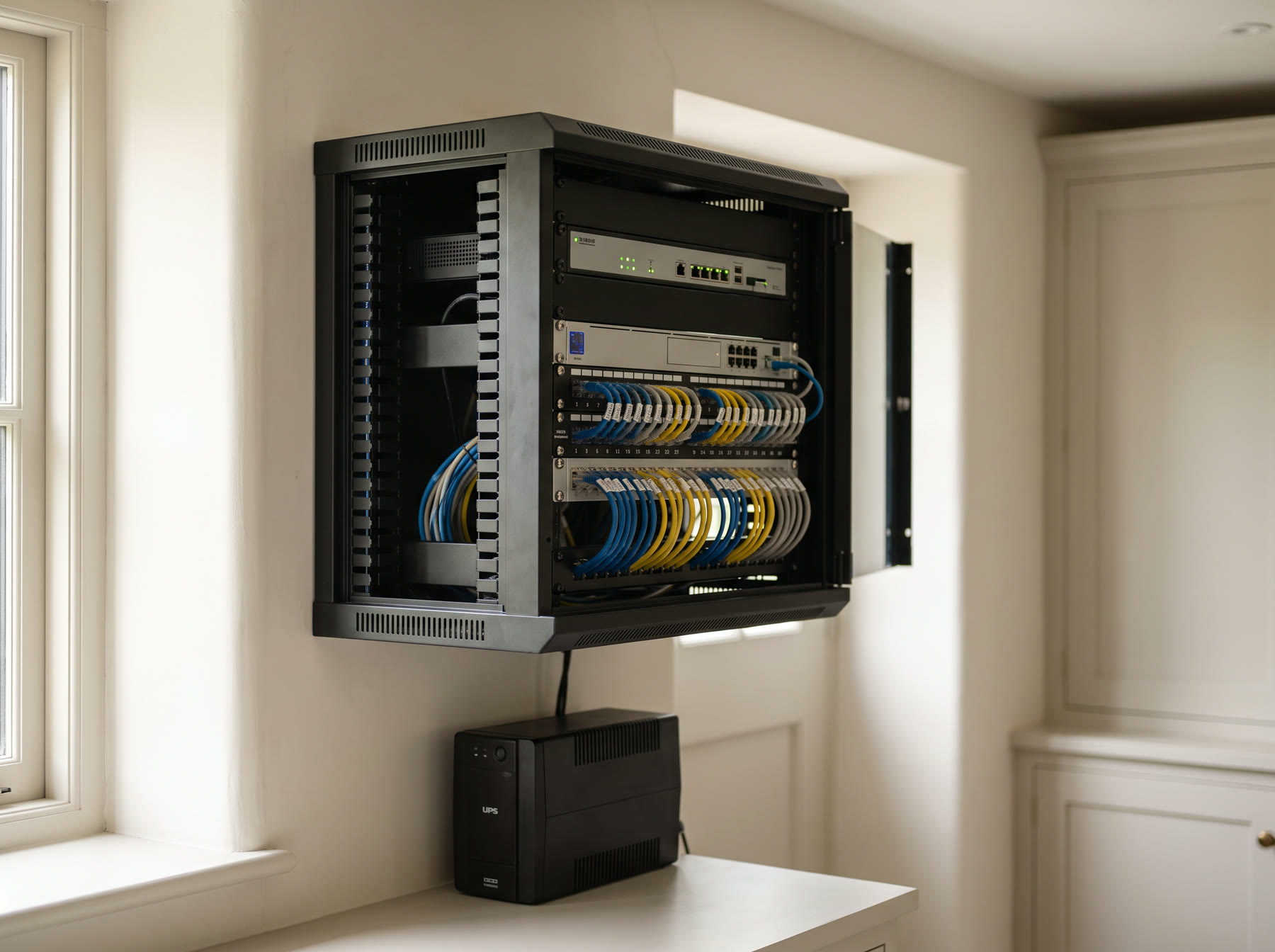

Networking & firewall
A firewall, a managed switch, and the smart devices kept on their own network. Secure access from outside. Every patch wire numbered, and a battery backup so it stays up.

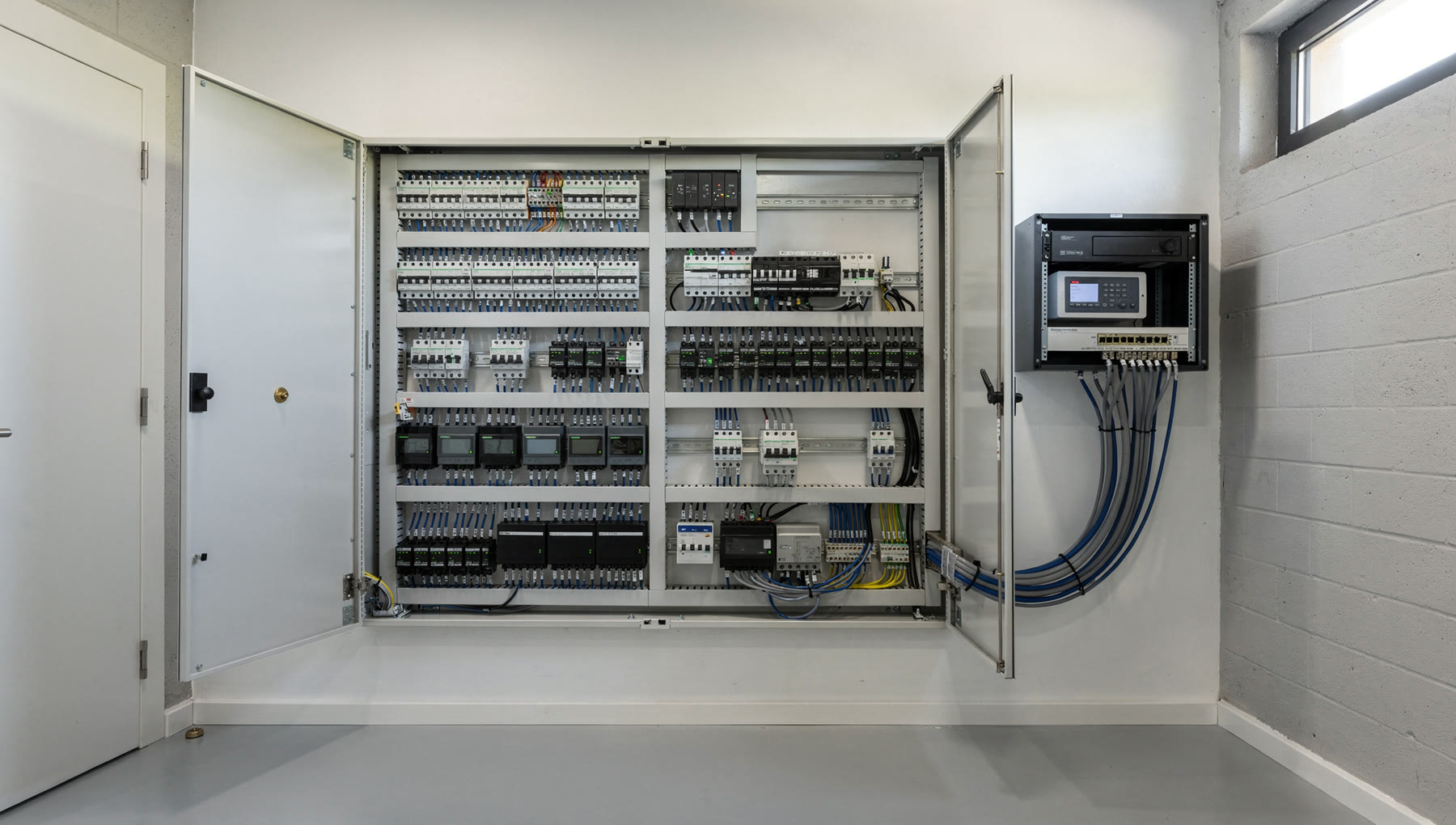

Power distribution
A modern panel room: numbered wiring, metering, clean separation, and the full schematics on file, so a local electrician can service it.
Circuit schedule · PWR-04
6 of 6 loops shown
Swipe sideways to see every column.
| Ref | Loop / zone | Controller / source | Wire type | Protection |
|---|---|---|---|---|
| 01 | DB incomer | Mains (GF panel) | 4×35mm² armoured | 100A MCCB |
| 02 | Lighting (GF loop 1) | DALI driver (GF-L1) | DALI + 2×1.5mm² / CAT6 | 16A MCB, Type B |
| 03 | Backup transfer | ATS panel | 4×16mm² | 63A, genset/UPS-fed |
| 04 | EV charger point | EV controller (garage DB) | 3×6mm² + earth | 32A RCBO |
| 05 | Pool & pump room | Pump relay (utility DB) | 3×4mm² + earth | 20A RCBO |
| 06 | Gate & perimeter | Access controller (PoE switch) | PoE / CAT6 | 802.3at, fused 6A |
Illustrative. A real installation ships with full as-built drawings.
Scalability
Add a room. Not a new system.
New rooms and devices join the core already running your home. Nothing gets torn out to add them.
One wired core
Built from day one, ready to be added to.
Add over time
New rooms and systems join that same core.
A path, not a rebuild
Every addition is planned for from the start.
Wireless where needed
Only when a finished wall leaves no route.
That’s the real promise behind a wired-first home: every new room slots into the one core already running yours, not a separate system to learn. Wireless only steps in when a finished wall truly leaves no route for a cable, and that fallback is planned for from day one too.
The Meshronix Experience Centre
See what is behind the wall.
Open the panel and the network cabinet at our Andheri West centre. See how it is put together.
